Product Details

One instrument, two technologies, full flexibility

Whether magnetic particle separation or novel SmartExtraction technology – the InnnuPure C16 touch significantly increases efficiency in nucleic acid extraction. Whatever your extraction method, the InnuPure C16 touch not only delivers higher yields and highly reproducible results but also helps you find the ideal combination of kit, protocol, and parameters.

  • Highly flexible DNA and RNA extraction
  • Two reliable functions: magnetic particle separation and SmartExtraction
  • The best solution for every material
  • Adapts to your requirements
Proficiency in the field of liquid handling

Liquid handling and lab automation technologies are among Analytik Jena's main areas of competence – with over 25 years of experience in the area of High Throughput (HTS).

Analytik Jena
InnuPure C16 touch

Efficient – fully automatic nucleic acid extraction

Intelligent – sophisticated kit architecture makes for easy handling

Proven – more than 25 years of experience in the field of liquid handling

Sure results – cross-contamination prevented

Easy-to-use – IPextract features intuitive controls

Need Assistance?

Contact us for expert advice for your needs and budget.

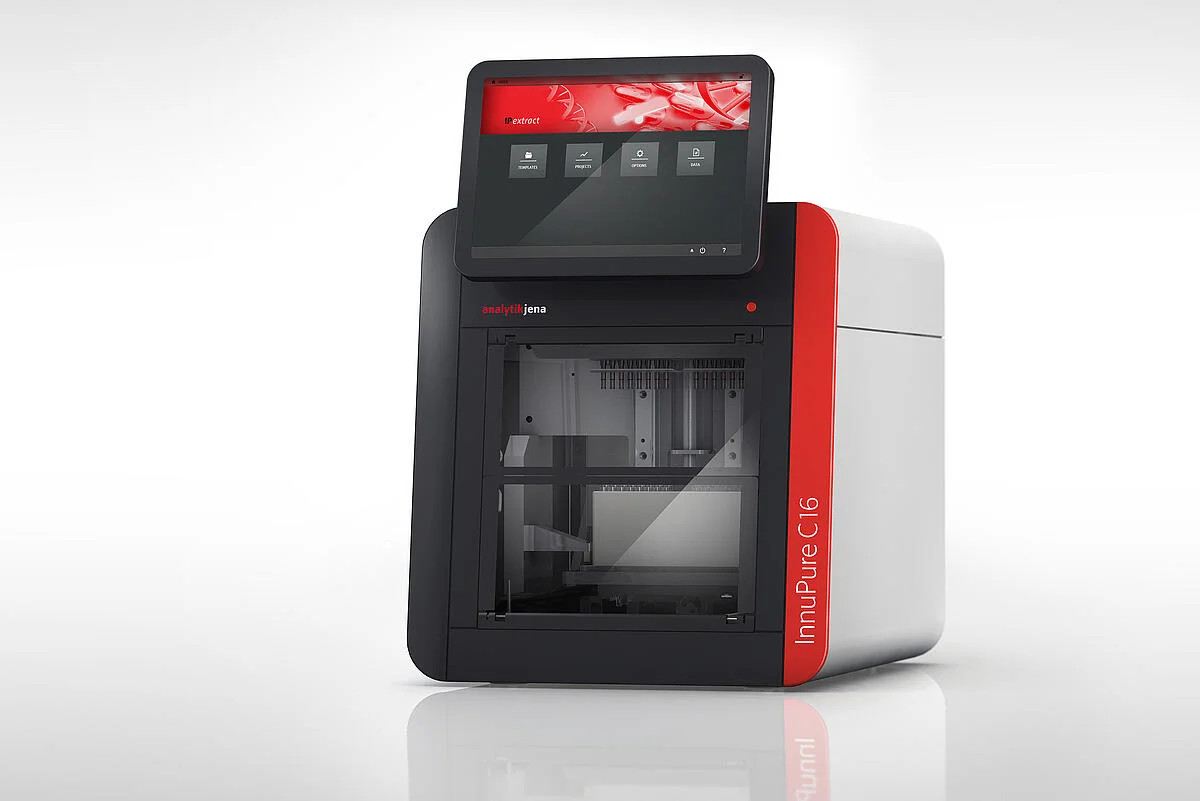

InnuPure C16 touch
Nucleic acid extraction – Simple, fast, and error-free

The InnuPure C16 touch combines high-precision liquid handling and the automated extraction of high-quality nucleic acids. The device sets new standards in terms of safety and user-friendliness. Pipetting errors are not an issue thanks to ready-to-use reagent plastic.

  • Pipette tips with aerosol filters prevent contamination
  • Optional UV lamp prevents further sources of contamination
  • Intuitive operation with a 10"-tablet PC
  • Software with individual optimization recommendations, depending on the materials involved
InnuPure C16 touch
Precise pipetting system for a high level of safety

The InnuPure C16 touch’s high-precision pipetting system ensures accurate and reproducible procedures at all times. The integrated dosage unit permits the elution volume to be set from 20 to 500 μl and be transferred automatically. The extraction kits reduce the risk of cross-contamination to an absolute minimum. The aerosol filters of the pipette tips reliably prevent contamination of dosage units and samples. Another advantage of the Innupure C16 touch is the piercing tool, this tool eliminates the need for manual removal of foils from the sealed reagent plastic. The system virtually eliminates the need to mix buffer solutions, which can lead to drops in performance. A UV lamp for efficient decontamination is also available as an option.

  • High-precision liquid handling and outstanding reproducibility
  • Straightforward and user-friendly with a high level of safety
  • Optional: UV lamp



BasisMagnetic or paramagnetic particles
Duration of extraction
  • Externe Lysis: < 45 min (ohne Lyse)
  • Interne Lyse: < 75 min (inkl. Lyse)
Ø Yield
  • Depending on type and amount of sample
  • Tissue (20 mg): up to 50 μg
  • Whole blood samples (200 μl): up to 10 μg
  • Plant (100 mg): up to 60 μg
Elution volume20 μl up to 500 μl (in steps of 10 μl)
Field of applicationDNA and RNA extraction


ControlStand-alone control
Display10“ tablet PC, color, touch, WIN 8.1
  • Sample-based wizard
  • Automatic pipetting of chosen elution volume
  • Automatic transfer of eluates into storage tubes with lid
  • Pre-installed extraction and decontamination protocols
  • Video sequences and display of residual time for ideal overview of the run
  • User management with 3 user levels


Cleaning / Decontamination
  • Big front door for easy access and wipe decontamination of the sample room
  • Optional: UV lamp for decontamination between two runs by 254 nm UV light
Kits and ReagentsReady-to-use kits for DNA and RNA extraction

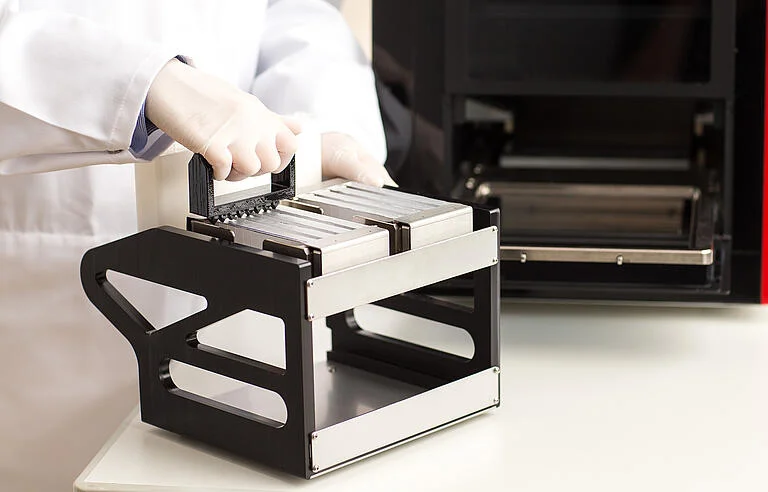

AdditionalPriming Station and Sample Tray

Sample parameters

Number of samplesUp to 16 samples in parallel, incl. single sample preparation
Sample amount
  • Depending on the type of sample
  • Up to 10 ml or 180 mg respectively
  • Up to 70 °C inside the sample
  • Support of lysis, drying and elution

Additional technical data

InterfaceTablet: USB for data transfer, barcode reader
Noise emissionMax. 55 dB
Warranty2 warranty on device system incl. tablet PC

Liquid Handling

Pipetting head / ChannelsDosing unit with 16 channels
Tips1 ml tip with aerosol filter
Working volumeUp to 1000 μl
FunctionsPipetting and piercing function of the sealed reagent plastic


WeightApprox. 30 kg
Dimension (W x H x L)400 mm x 560 mm x 600 mm
