UVP High Intensity UV Lamps

Name: UVP High Intensity UV Lamps
Brand: Analytik Jena
SKU: smac-44

Product Details

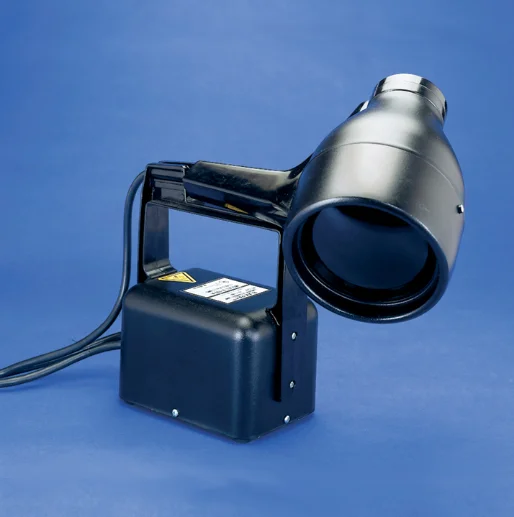

The UVP Blak-Ray B-100 Series high powered UV lamps offer brilliant irradiance for optimum fluorescence. The B-100AP lamp is placed in the transformer base for hands-free operation.

B-100AP and B-100AP/R

B-100AP models feature 100 watt longwave UV, Cool-Touch housing and ballast base. At 18 in. (457 mm), the lamp produces a highly intense center of UV irradiance about 5 in. (127 mm) in diameter. Lamp head can rotate 360 degrees when attached to the base for hands-free operation or lamp can be removed from the base. 8 ft primary and secondary cords. For added mobility, select the B-100AP/R which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.

B-100A and A-100AR

The longwave B-100A is manufactured with a scratch-resistant aluminum housing which connects to ballast base with an 8 foot cord; 8 foot secondary cord is included. The 100 watt longwave UV bulb is excellent for inspection applications. For increased mobility, select the B-100AR which includes 20 ft (6.1m) primary and secondary cords. Uses for these lamps include non-destructive testing and fluorescence inspection.

B-100SP

This 90 watt longwave, self-ballasted lamp is a highly portable, high intensity lamp for automotive leak detection applications. The ballast is built directly into the bulb. The B-100SP features the Cool-Touch housing and an 8 ft. (2.44m) cord.

B-100Y and B-100YP

These models feature a yellow filter which blocks wavelengths shorter than 500 nm and produces three strong mercury lines at 543, 574 and 576 nm. The high contrast light is produced for fine surface particle detection. Particles down to 10 microns are routinely visible with this lamp. The B-100Y is built with aluminum housing and the B-100YP with a plastic housing. These lamps are excellent for semiconductor wafer inspection as most photoresist absorption occurs below 450 nm.

Applications include:

Fluorescence Inspections
Non Destructive Testing
Leak Detection
Readmission

TECHNICAL SPECIFICATIONS

Features	UVP High Intensity UV Lamps
UV Source	365 nm longwave UV
Watts	100 watts (all models except B-100SP which is 90 watts)
B-100A Dimensions	Lamp Head 8.5D x 5.5Dia. in. (216 x 140 mm) Weight: 11.72 lb (5.33 kg) Cord length: 8 ft. (2.44 m)
B-100AR Dimensions	Lamp Head 8.5D x 5.5Dia. in. (216 x 140 mm) Weight: 11.72 lb (5.33 kg) Cord length: 20 ft. primary and secondary
B-100AP Dimensions	Lamp Head 9.75D x 6Dia in. (248 x 152 mm) Weight: 12.5 lb. (5.6 kg) Cord length: 8 ft. (2.44 m)
B-100AP/R Dimensions	Lamp Head 9.75D x 6Dia in. (248 x 152 mm) Weight: 12.5 lb. (5.6 kg) Cord length: 20 ft. primary and secondary
B-100SP Dimensions	Lamp Head 9.75D x 6Dia. in. (248 x 152 mm) Weight: 3.14 lb. (1.43 kg) Cord length: 8 ft. (2.44 m)
B-100Y Dimensions	Lamp Head 8.5D x 5.5Dia. in. (216 x 140 mm) Weight: 11.72 lb (5.33 kg) Cord length: 8 ft. (2.44 m)
B-100YP Dimensions	Lamp Head 9.75D x 6Dia in. (248 x 152 mm) Weight: 12.5 lb. (5.67 kg) Cord length: 8 ft. (2.44 m)

B-100 "P" series lamps come with heat-resistant plastic (Cool-Touch) housing allowing users to handle the lamp head regardless of how long the lamp has been operating

Non "P" models are built with an aluminum lamp head

A 100 watt spot bulb is standard with all models (except the B-100SP); the bulb is rated at 5000 hours

Self-ballasted bulb included with the B-100SP has an average life of 450 to 2000 hours depending on use patterns

The lamp head connects to the transformer base for hands free use (all models except B-100SP) allowing the lamp head to rotate a full 360°; remove the lamp from the base for additional mobility
